CAD Categories:

Entryways

Thumbnail
(click to enlarge)		 Filename Description Material Height Diam Download
DWG		 Download
PDF		 Download
RFA

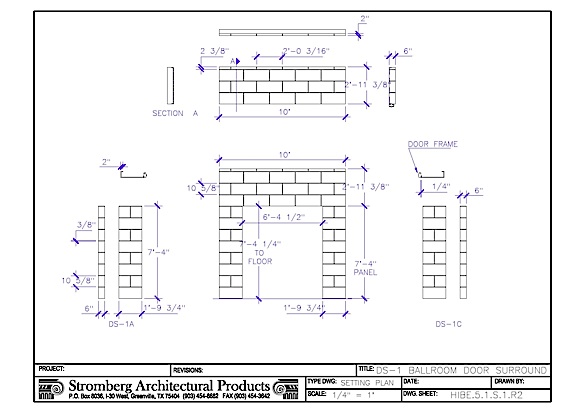

HIBE.5.-.S.1.R2
HIBE.5.-.S.1.R2 Door Surround All 10' 7' 4"

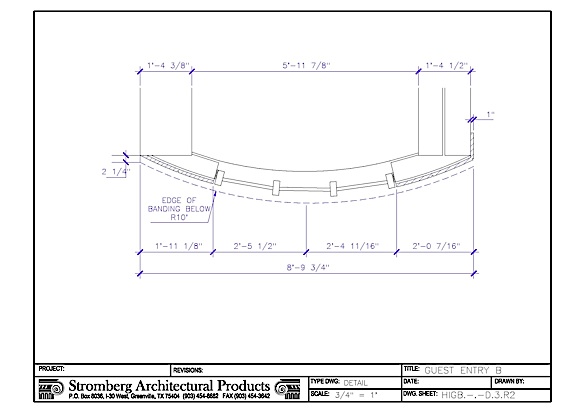

HIGB.-.-.D.3.R2
HIGB.-.-.D.3.R2 Banding All 8' 9 3/4"

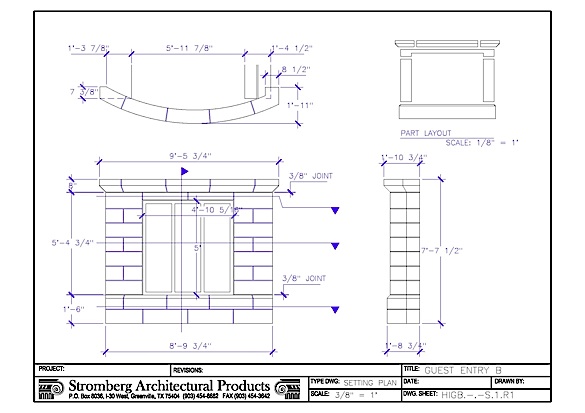

HIGB.-.-.S.1.R1
HIGB.-.-.S.1.R1 Entry All 9' 5 3/4" 5' 4 3/4"

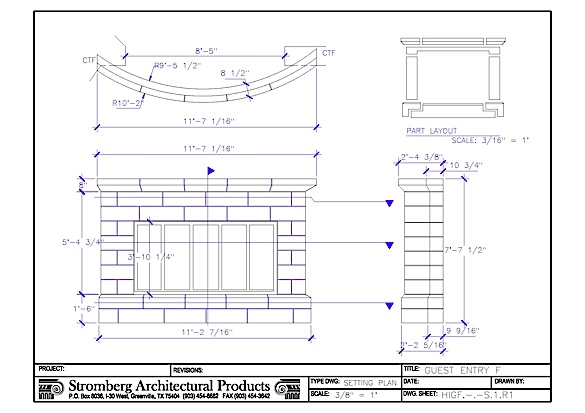

HIGF.-.-.S.1.R1
HIGF.-.-.S.1.R1 Entry All 11' 2 7/16" 5' 4 3/4"

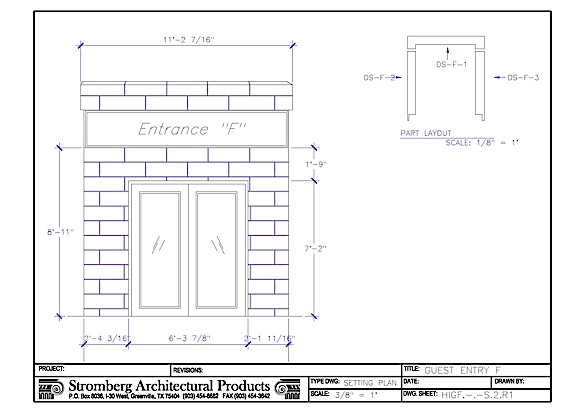

HIGF.-.-.S.2.R1
HIGF.-.-.S.2.R1 Entry All 11' 2 7/16" 8' 11"

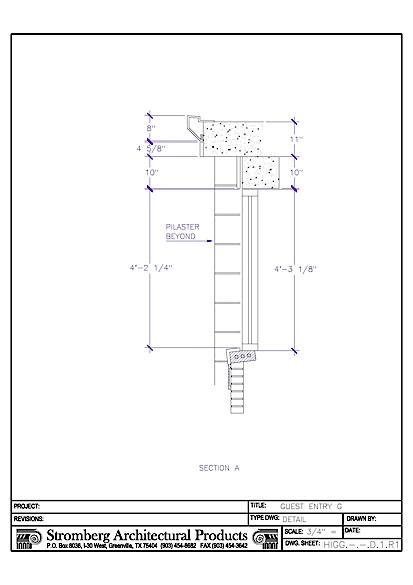

HIGG.-.-.D.1.R1
HIGG.-.-.D.1.R1 Mounting All

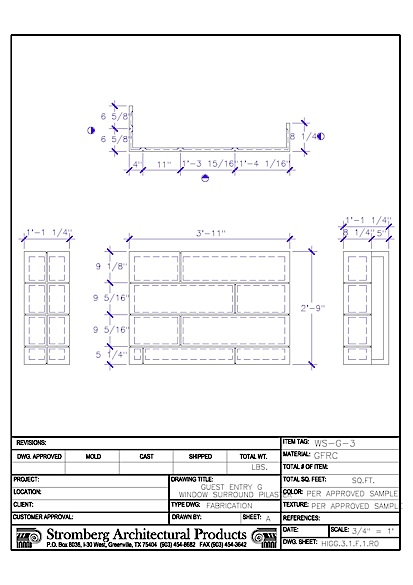

HIGG.3.1.F.1.R0
HIGG.3.1.F.1.R0 Window Surround All 3' 11" 2' 9"

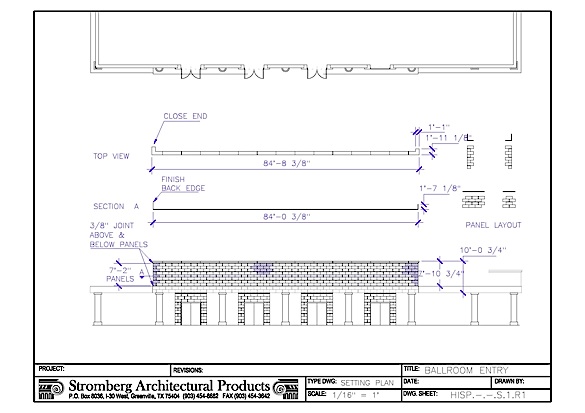

HISP.-.-.S.1.R1
HISP.-.-.S.1.R1 Entry All 84' 8 3/8" 10' 0 3/4"

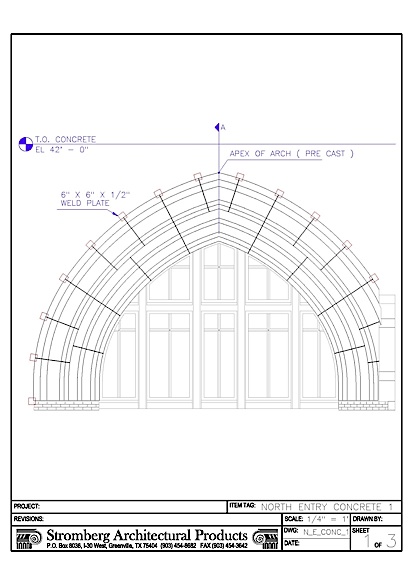

N_E_CONC_1
N_E_CONC_1 Entry All

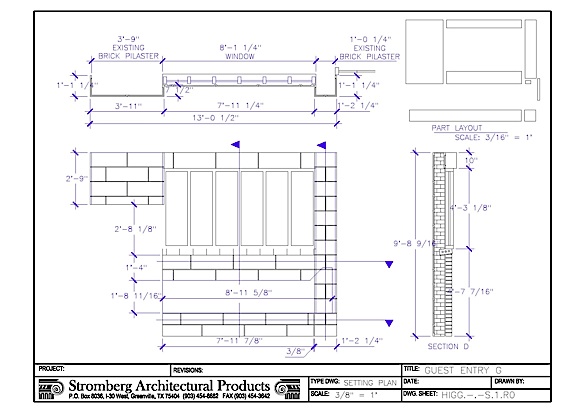

XXX_HIGG.-.-.S.1.R0
XXX_HIGG.-.-.S.1.R0 Entry All 13' 0 1/2" 9' 8 9/16"

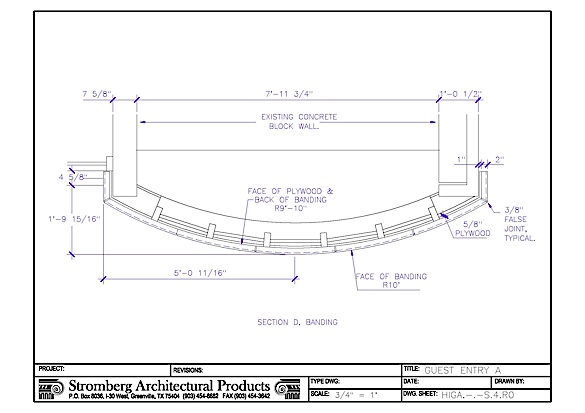

XX_HIGA.-.-.S.4.R0 Entry All 7' 11 3/4"
XX_HIGA.-.-.S.4.R0

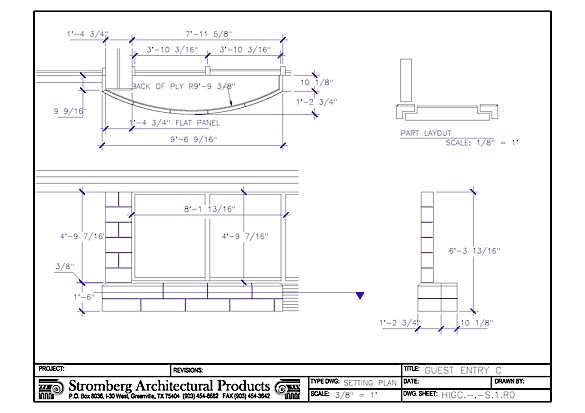

XX_HIGC.-.-.S.1.R0 Entry All 6' 3 13/16" 9' 8 9/16"
XX_HIGC.-.-.S.1.R0

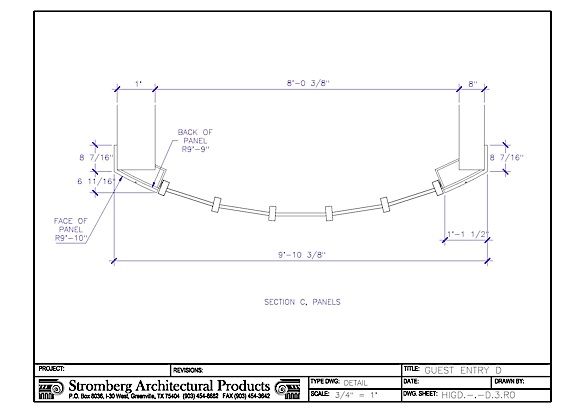

XX_HIGD.-.-.D.3.R0 Entry All 9' 10 3/8"
XX_HIGD.-.-.D.3.R0

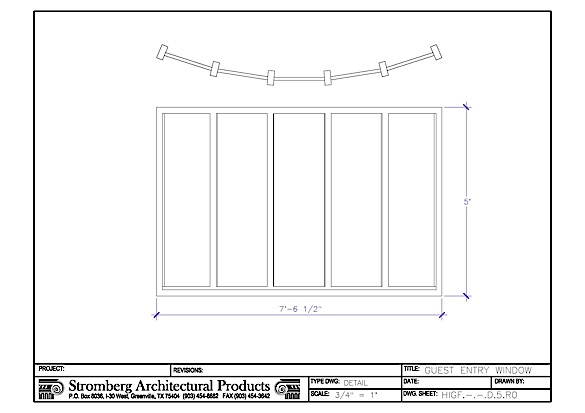

XX_HIGF.-.-.D.5.R0 Entry Window All 5' 7' 6 1/2"
XX_HIGF.-.-.D.5.R0

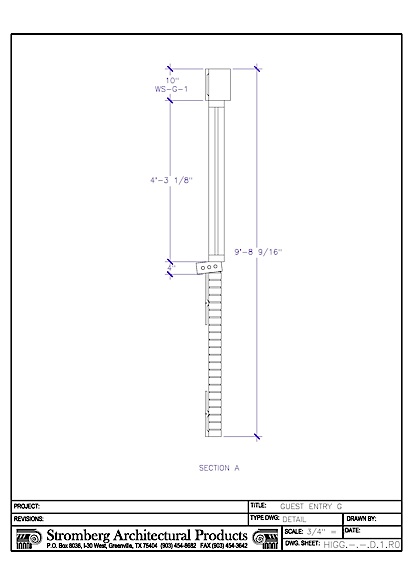

XX_HIGG.-.-.D.1.R0 Entry All 9' 8 9/16"
XX_HIGG.-.-.D.1.R0

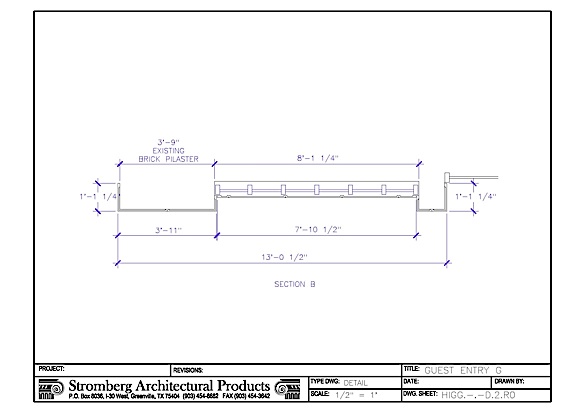

XX_HIGG.-.-.D.2.R0 Entry All 1' 1 1/4" 13' 0 1/2"
XX_HIGG.-.-.D.2.R0

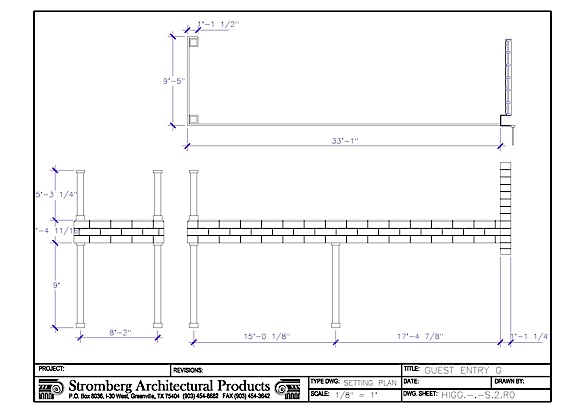

XX_HIGG.-.-.S.2.R0 Entry All 16' 8" 33' 1"
XX_HIGG.-.-.S.2.R0

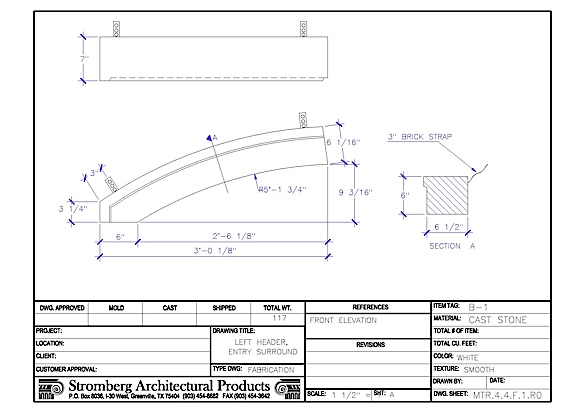

XX_MTR.4.4.F.1.R0 Left Header All 6 1/18" 3' 0 1/2"
XX_MTR.4.4.F.1.R0

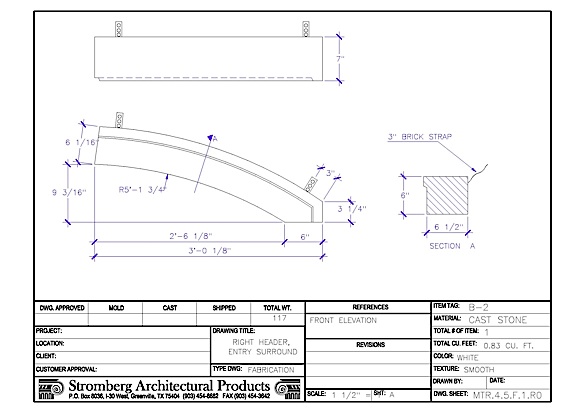

XX_MTR.4.5.F.1.R0 Right Header All 6 1/18" 3' 0 1/8"
XX_MTR.4.5.F.1.R0

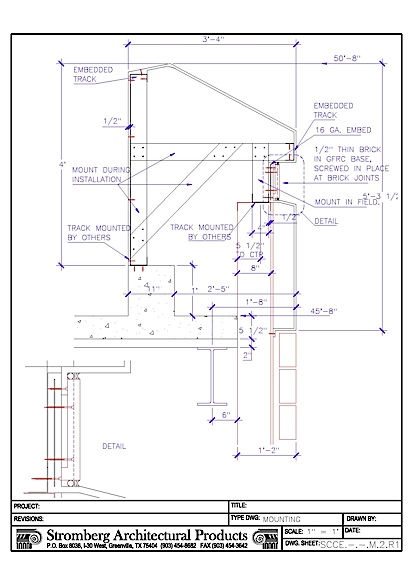

XX_SCCE.-.-.M.2.R0 Mounting Details All
XX_SCCE.-.-.M.2.R0
