Balusters
| Thumbnail (click to enlarge) |
Filename | Description | Material | Height | Diam | Download DWG |
Download |
Download RFA |
|---|---|---|---|---|---|---|---|---|
 |

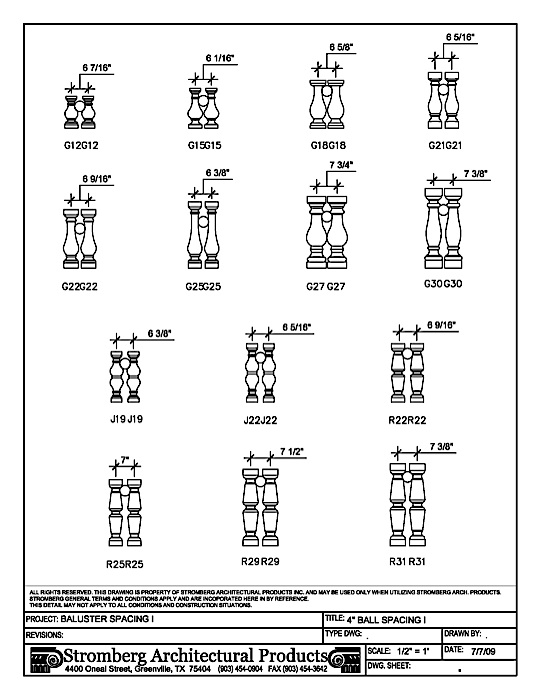

4" Ball Spacing Guide | All |
|
|
|
|||
 |

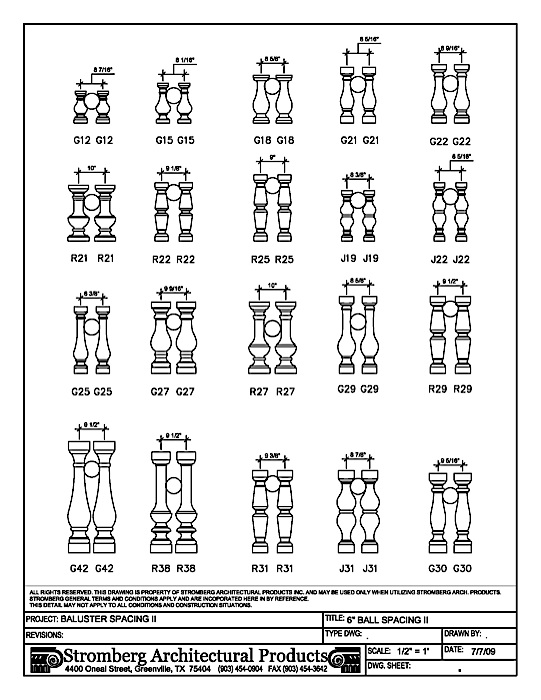

6" Ball Spacing Guide | All |
|
|
||||
 |

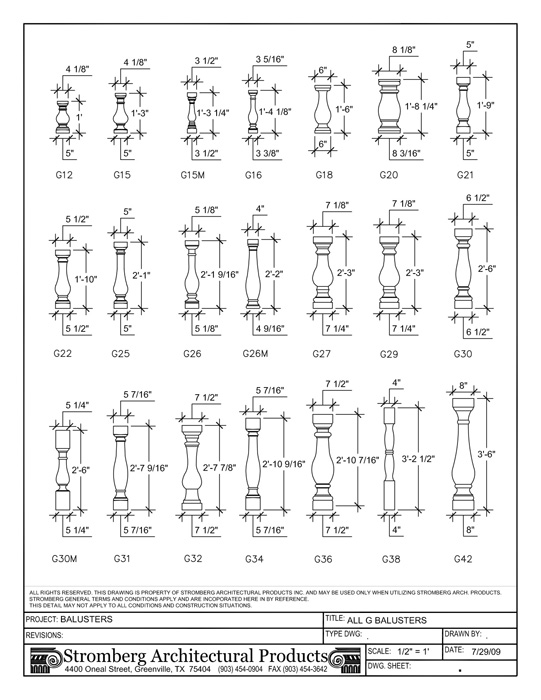

All G Balusters | All G series baluster profiles including dimensions | All | All | All |
|
|
|
 |

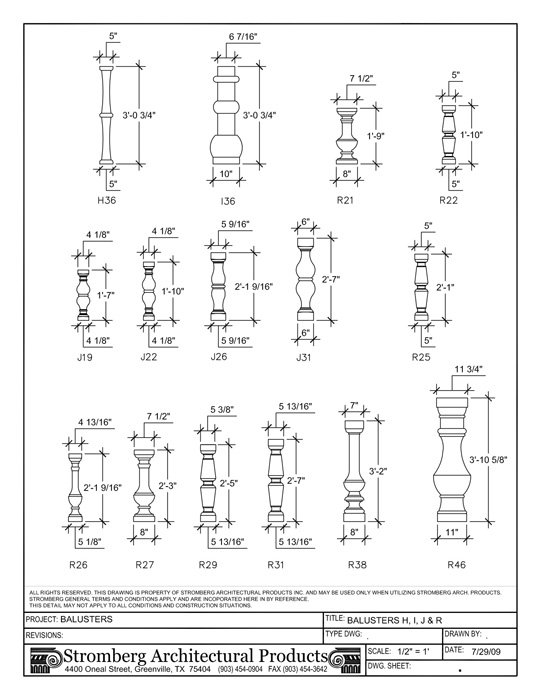

All H, I, J, R Series Balusters | All H, I, J and R series balusters with dimensions | All | All | All |
|
|
|
 |

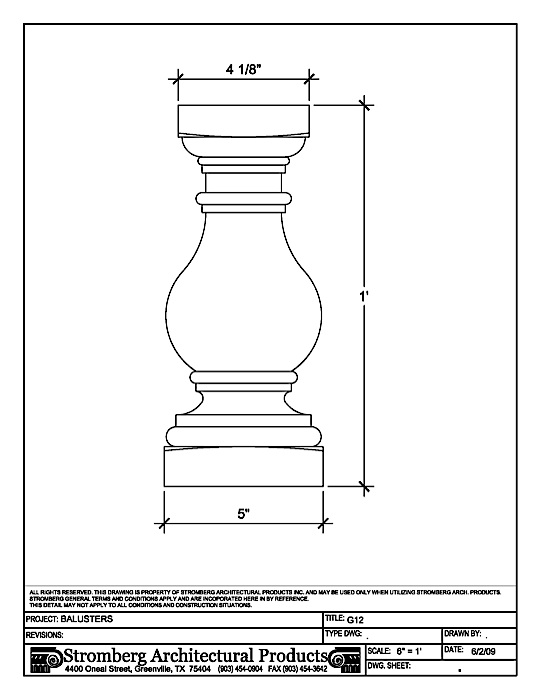

G12 | All | 1' | 4 1/8" |
|
|
||
 |

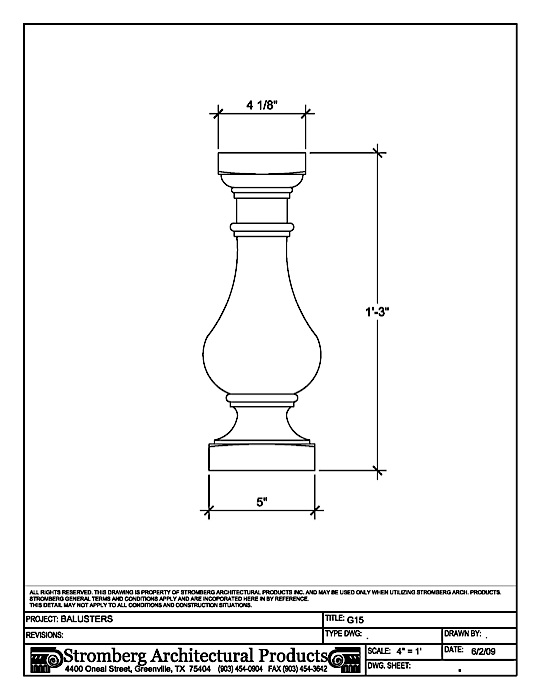

G15 | All | 1' 3" | 4 1/8" |
|
|
||
 |

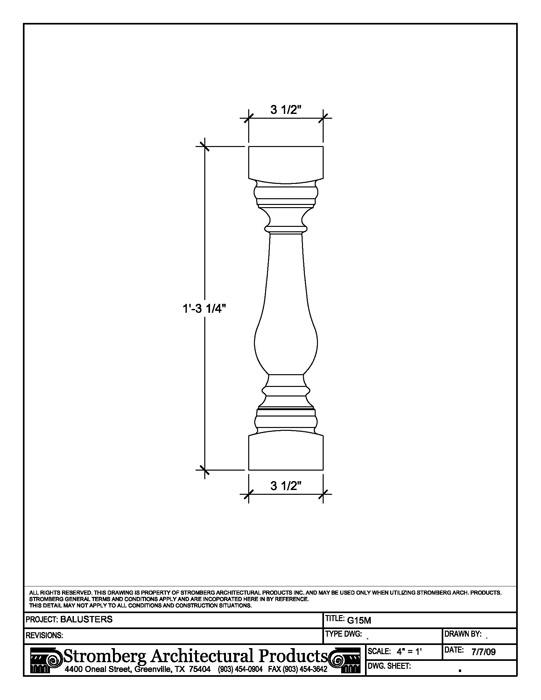

G15M | All | 1' 3 1/4" | 3 1/2" |
|
|
||
 |

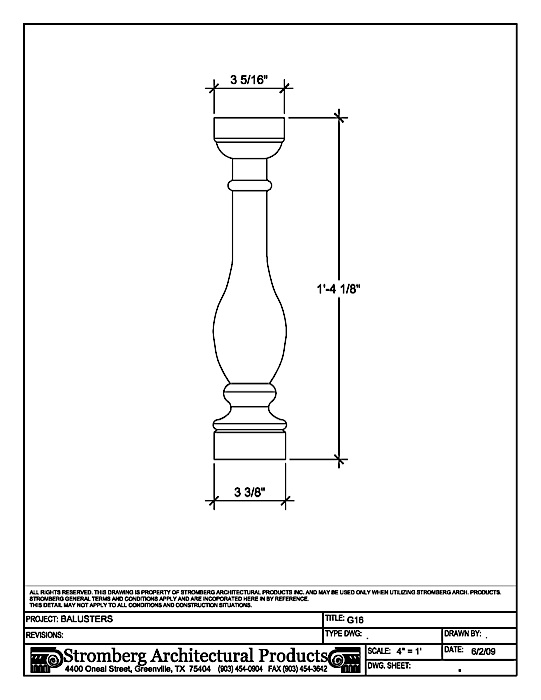

G16 | All | 1' 4 1/8" | 3 5/16" |
|
|
||
 |

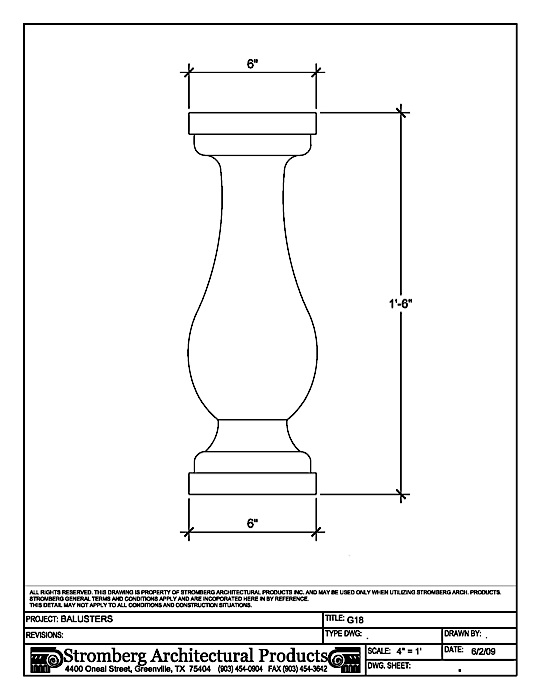

G18 | All | 1' 6" | 6" |
|
|
||
 |

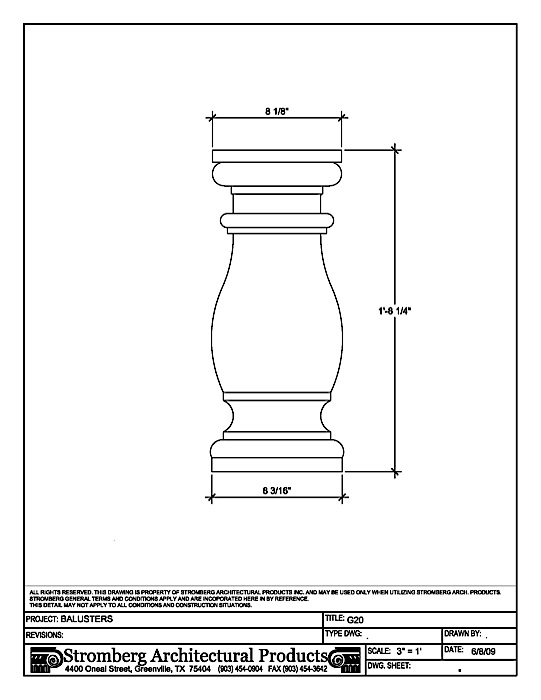

G20 | All | 1' 8 1/4" | 8 1/8" |
|
|
||
 |

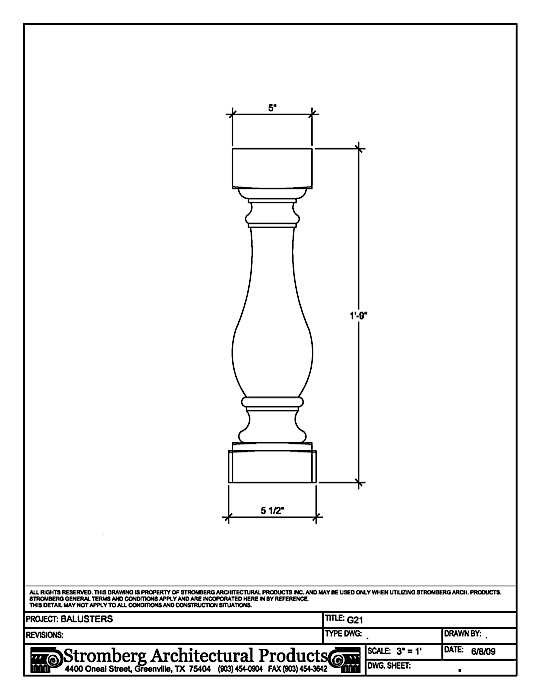

G21 | All | 1' 9" | 5" |
|
|
||
 |

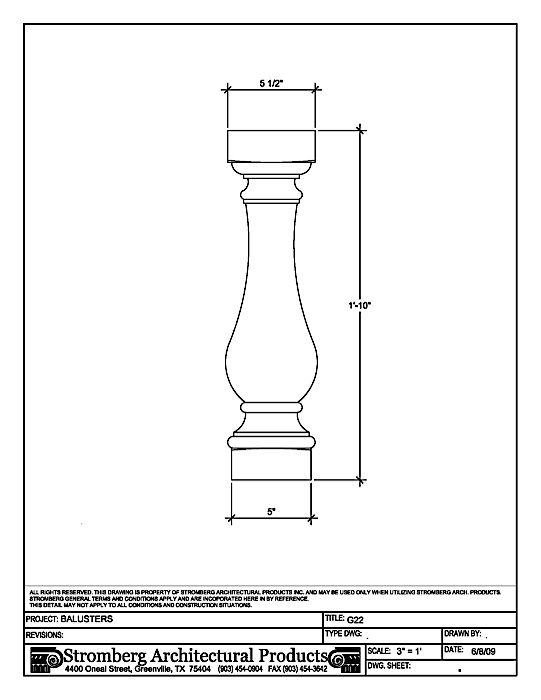

G22 | All | 1' 10" | 5 1/2" |
|
|
||
 |

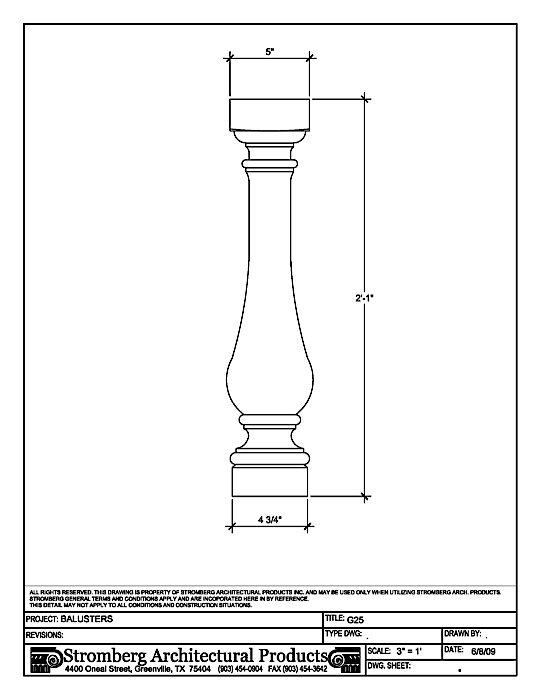

G25 | All | 2' 1" | 5" |
|
|
||
 |

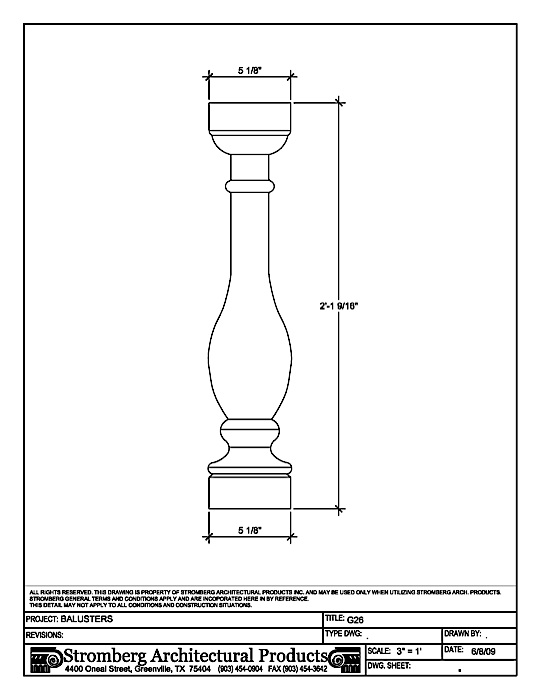

G26 | All | 2' 1 9/16" | 5 1/8" |
|
|
||
 |

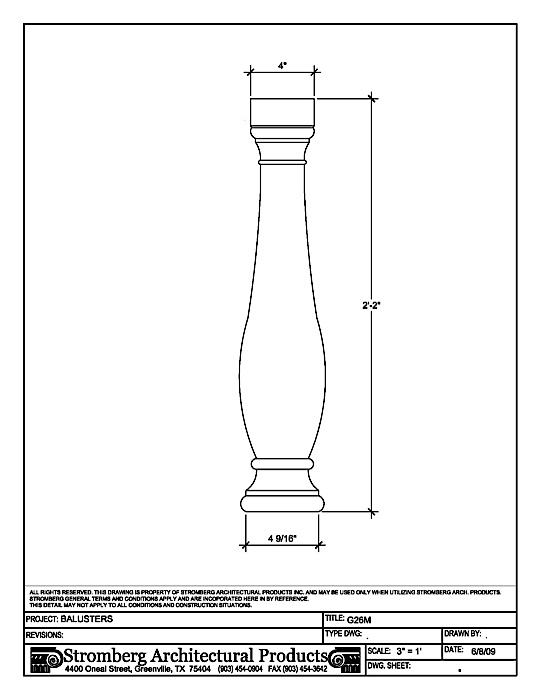

G26M | All | 2' 2" | 4" |
|
|
||
 |

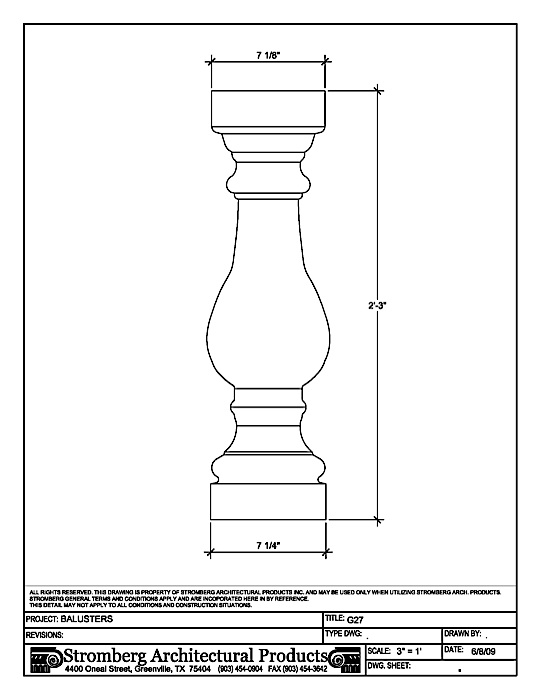

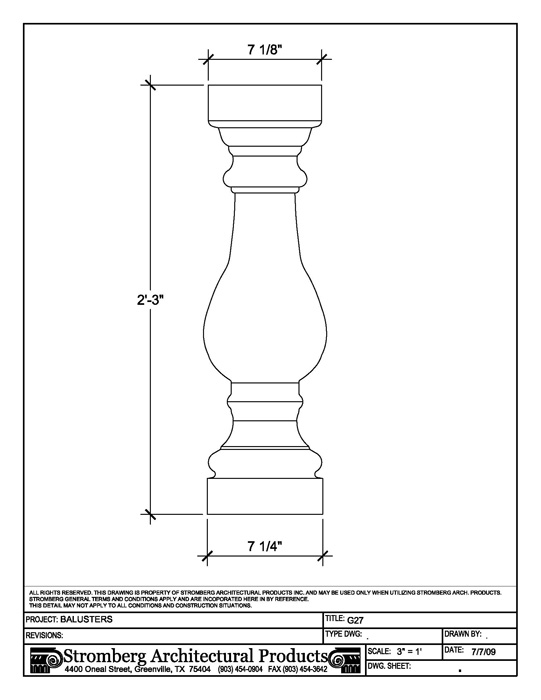

G27 | All | 2' 3" | 7 1/8" |
|
|
||
 |
G29 | All | 2' 3" | 7 1/8" |
|
|
||
 |
G30 | All | 2' 6" | 8 1/2" |
|
|
||
 |

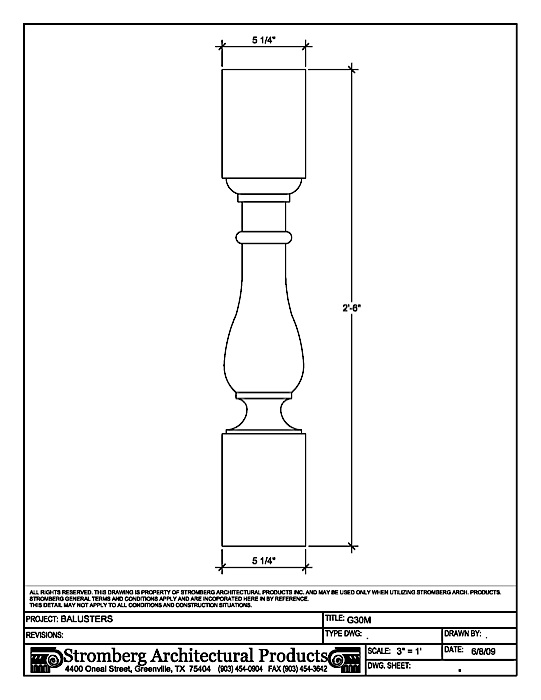

G30M | All | 2' 8" | 5 1/4" |
|
|
||
 |

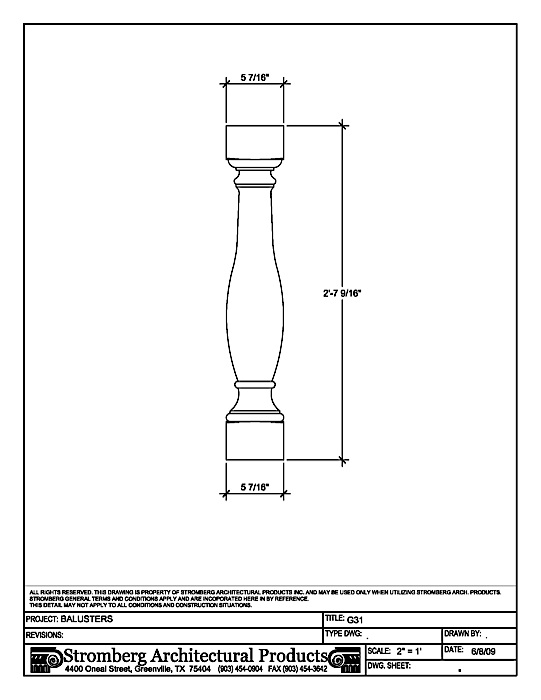

G31 | All | 2' 7 9/16" | 5 7/16" |
|
|
||
 |

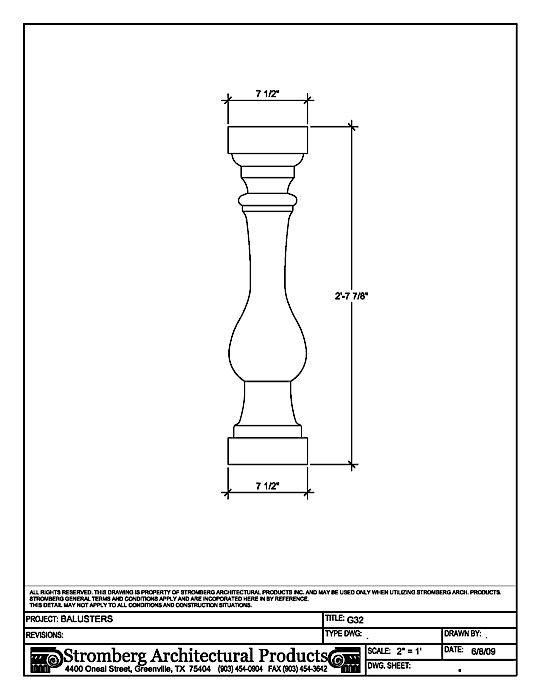

G32 | All | 2' 7 7/8" | 7 1/2" |
|
|
||
 |

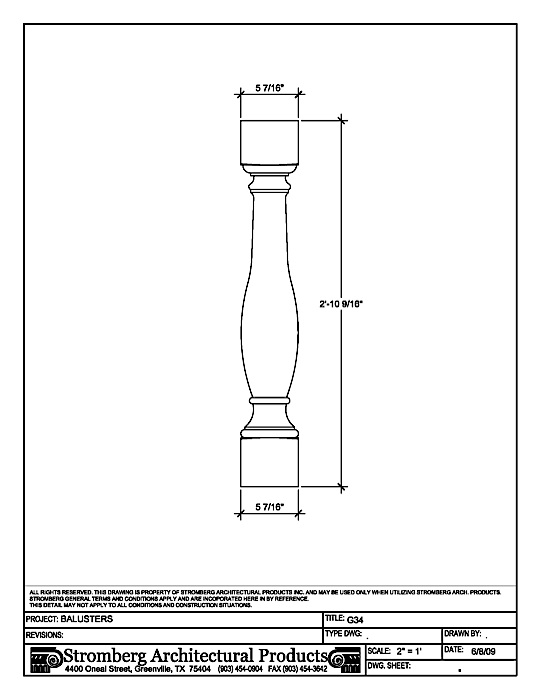

G34 | All | 2' 10 9/16" | 5 7/16" |
|
|
||
 |

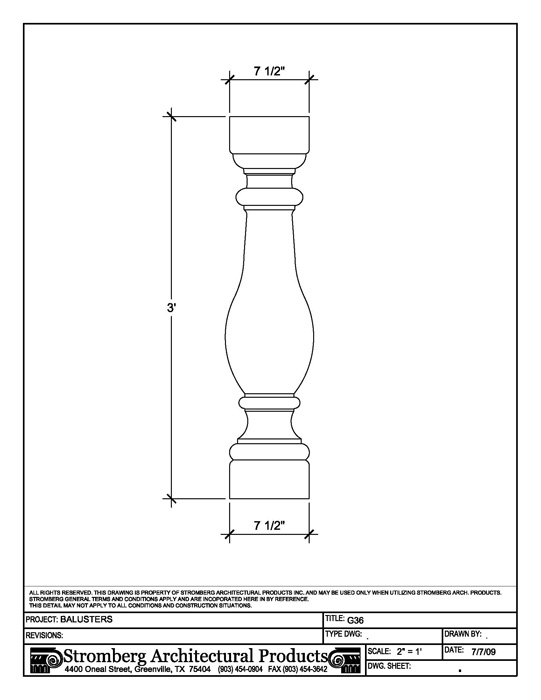

G36 | All | 3' | 7 1/2" |
|
|
||
 |

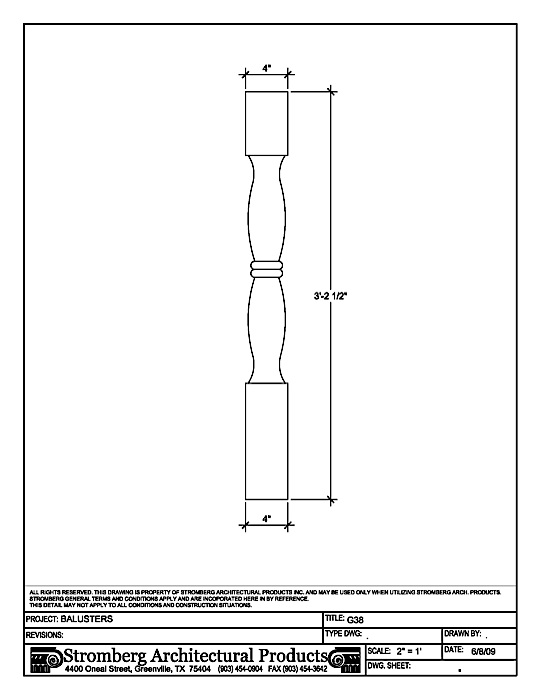

G38 | All | 3' 2 1/2" | 4" |
|
|
||
 |
G42 | All | 3' 6" | 8" |
|
|
||
 |

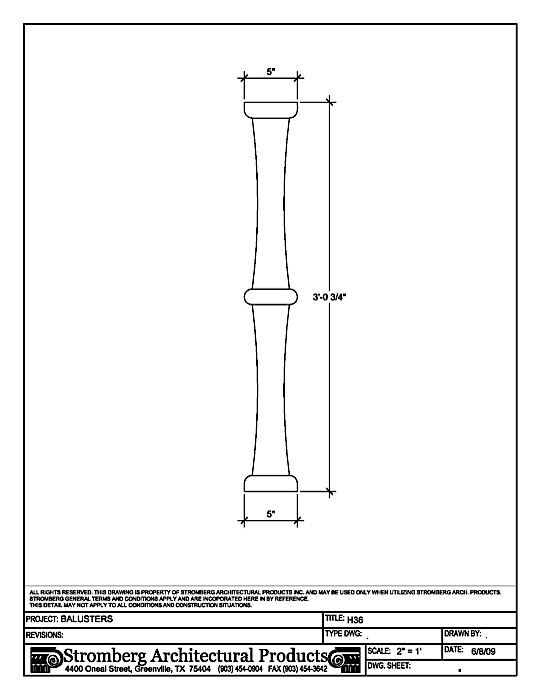

H36 | All | 3' 3/4" | 5" |
|
|
||
 |

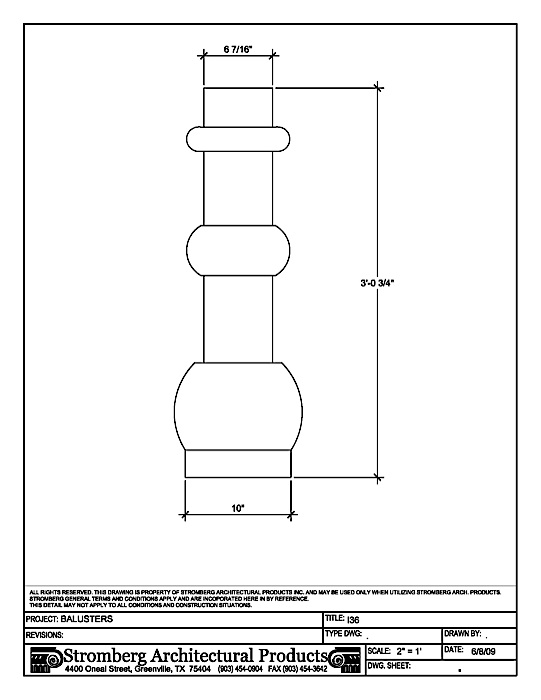

I36 | All | 3' 3/4" | 6 7/16" |
|
|
||
 |

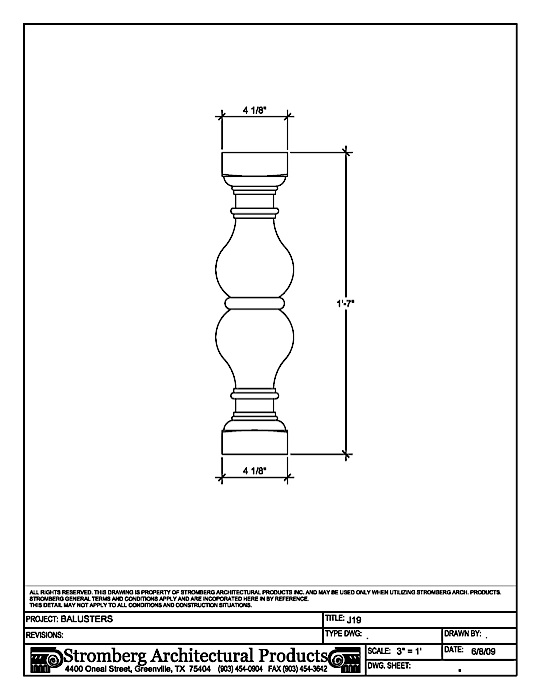

J19 | All | 1' 7" | 4 1/8" |
|
|
||
 |

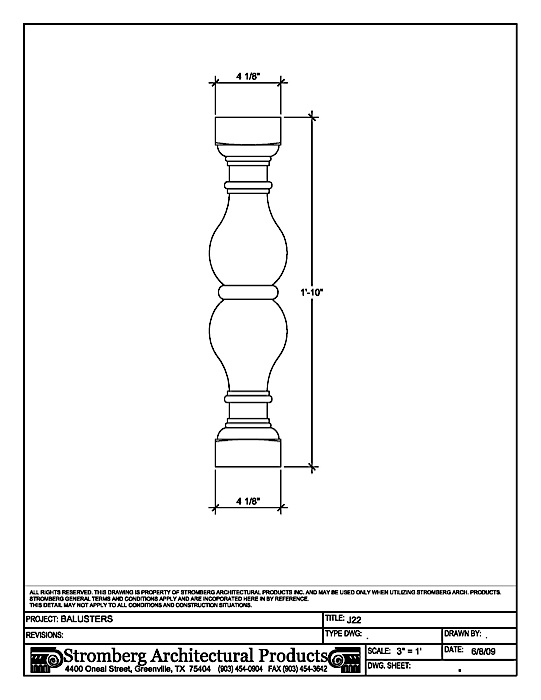

J22 | All | 1' 10" | 4 1/8" |
|
|
||
 |

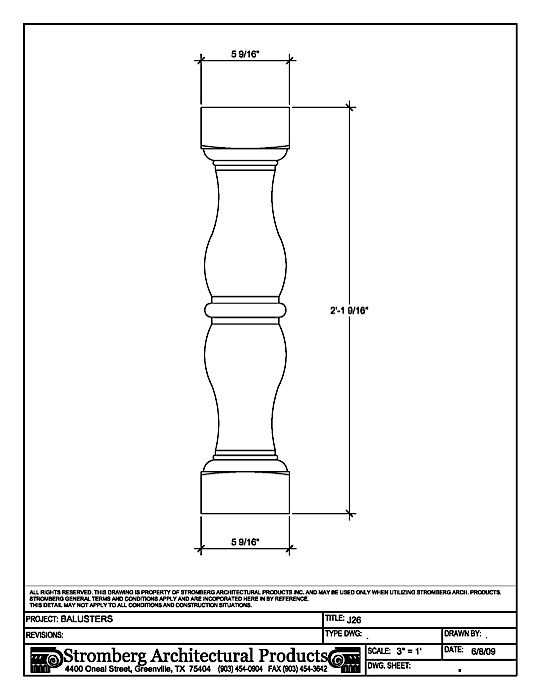

J26 | All | 2' 1 9/16" | 5 9/16" |
|
|
||
 |

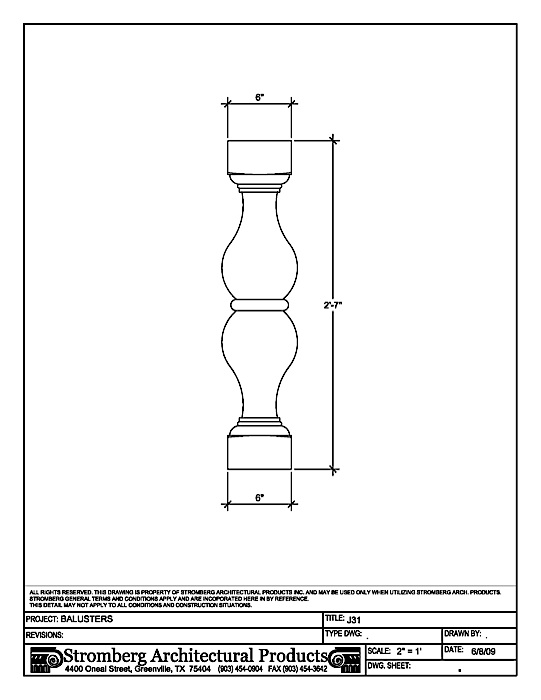

J31 | All | 2' 7" | 6" |
|
|
||
 |

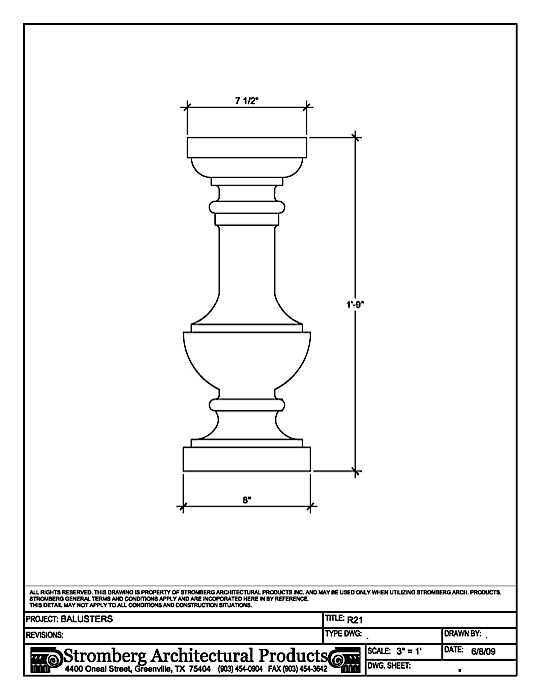

R21 | All | 1' 9" | 7 1/2" |
|
|
||
 |

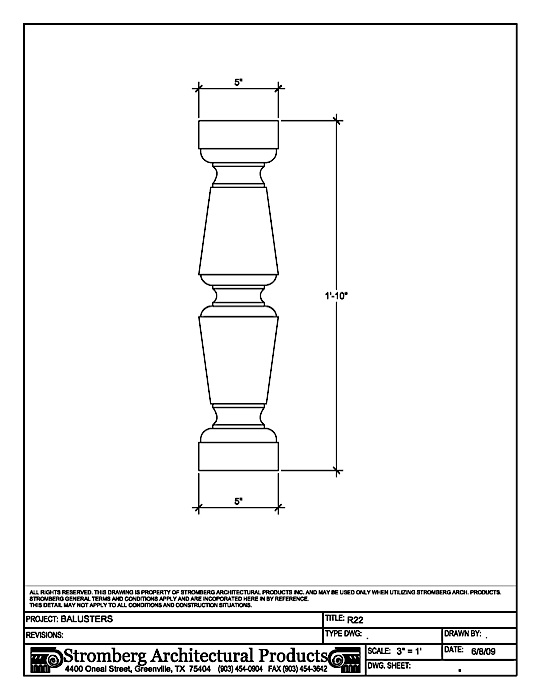

R22 | All | 1' 10" | 5" |
|
|
||
 |

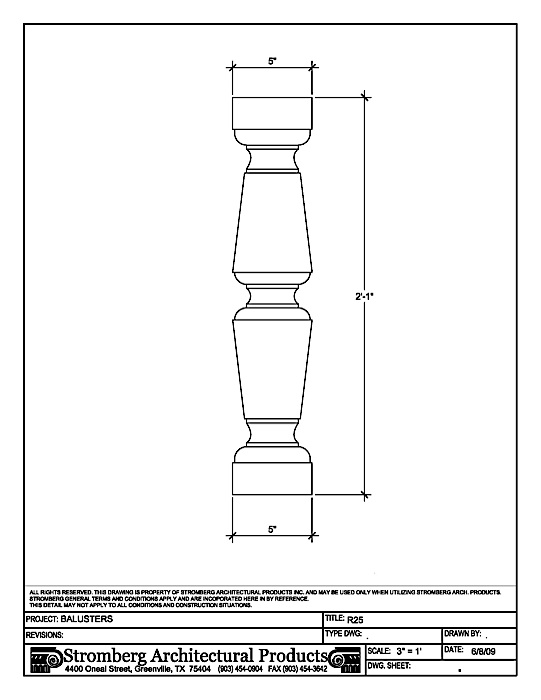

R25 | All | 2' 1" | 5" |
|
|
||
 |

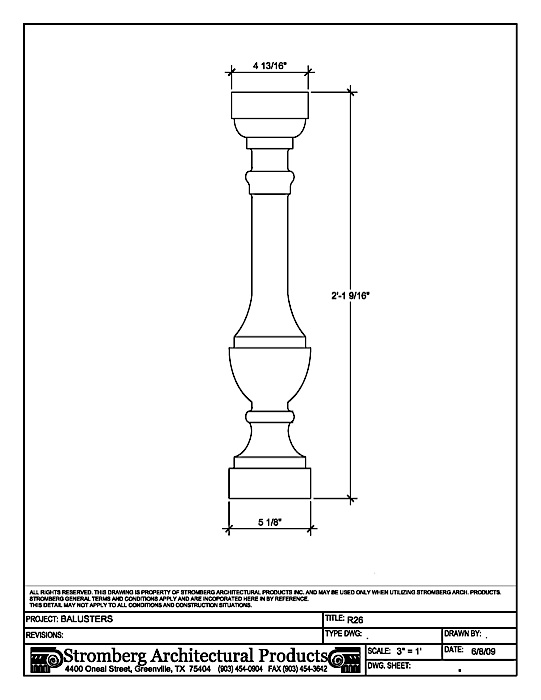

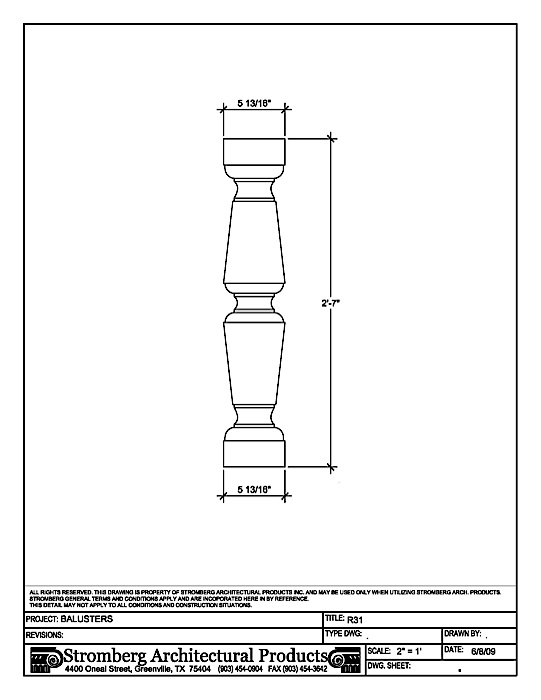

R26 | All | 2' 1 9/16" | 4 13/16" |
|
|
||
 |

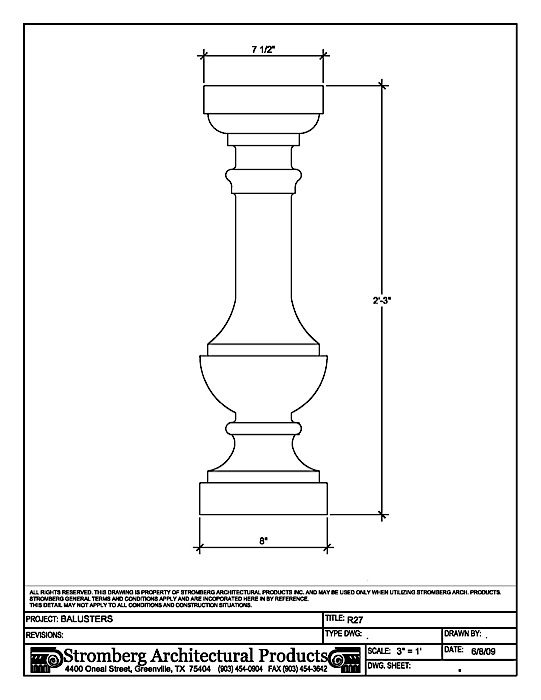

R27 | All | 2' 3" | 7 1/2" |
|
|
||
 |

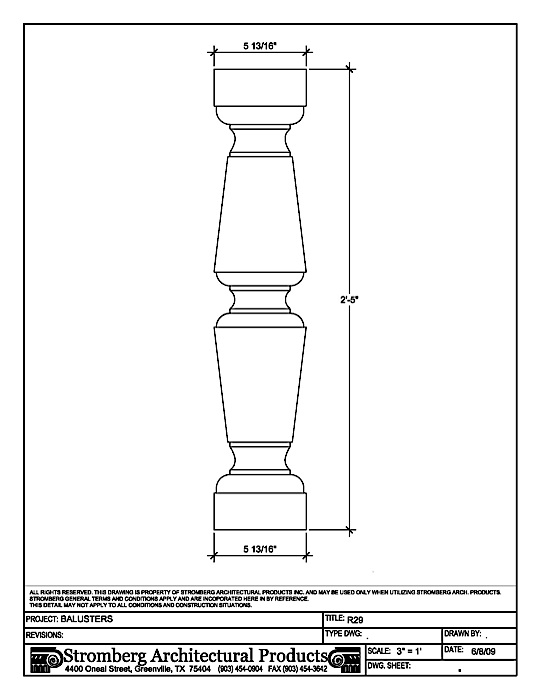

R29 | All | 2' 5" | 5 13/16" |
|
|
||
 |
R31 | All | 2' 7" | 5 13/16" |
|
|
||
 |

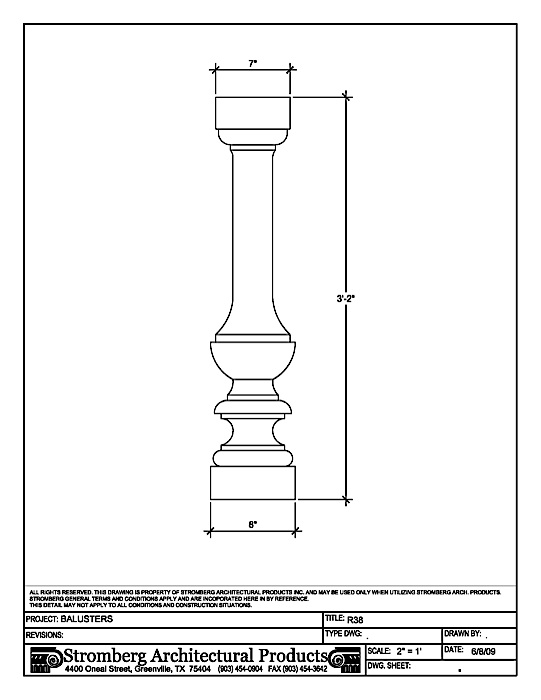

R38 | All | 3' 2" | 7" |
|
|
||
 |

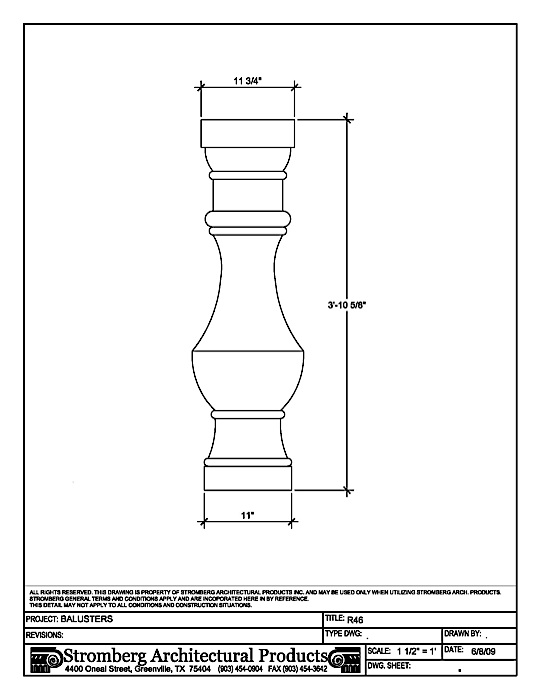

R46 | All | 3' 10 5/8" | 11 3/4" |
|
|
